High-Temperature Tape for Automotive Electronics: Challenges, Requirements & Solutions

Modern vehicles contain over 2,000 electronic components. Every single one of them  may use high-temperature tape somewhere in its manufacturing. And automotive  quality standards are unforgiving. A tape failure in a consumer gadget means a  return; a tape failure in an engine control unit (ECU) or battery management system  (BMS) can mean a safety recall. Sourcing automotive polyimide tape requires a deep  understanding of extreme environmental stresses, rigorous industry standards, and  uncompromising quality. This guide details the unique challenges of automotive  electronics and how to specify tape that survives the journey from the assembly line  to a decade on the road.

Why Automotive Electronics Has Unique Tape Requirements

Automotive electronics face a combination of stresses rarely seen in consumer  electronics. They must endure extreme under-hood temperatures (-40°C to +150°C  continuous, with spikes to 260°C during manufacturing), constant vibration,  exposure to aggressive automotive fluids (brake fluid, coolant, oil), and high  humidity. Standard industrial tapes cannot survive this environment. Automotivegrade high temperature tape must maintain adhesion, structural integrity, and  electrical insulation properties across decades of thermal cycling and chemical  exposure.

Automotive Industry Standards Your tape supplier must understand and comply with automotive standards:

* AECQ200: The passive component standard that includes thermal shock, temperature  cycling, and humidity testing for adhesive materials.

* IATF 16949: The global quality  management standard for the automotive supply chain. Suppliers must demonstrate  zero-defect manufacturing and traceability.

* ISO 16750: Specifies environmental  conditions and testing for electrical/electronic equipment in road vehicles, including  thermal, mechanical, and chemical loads.

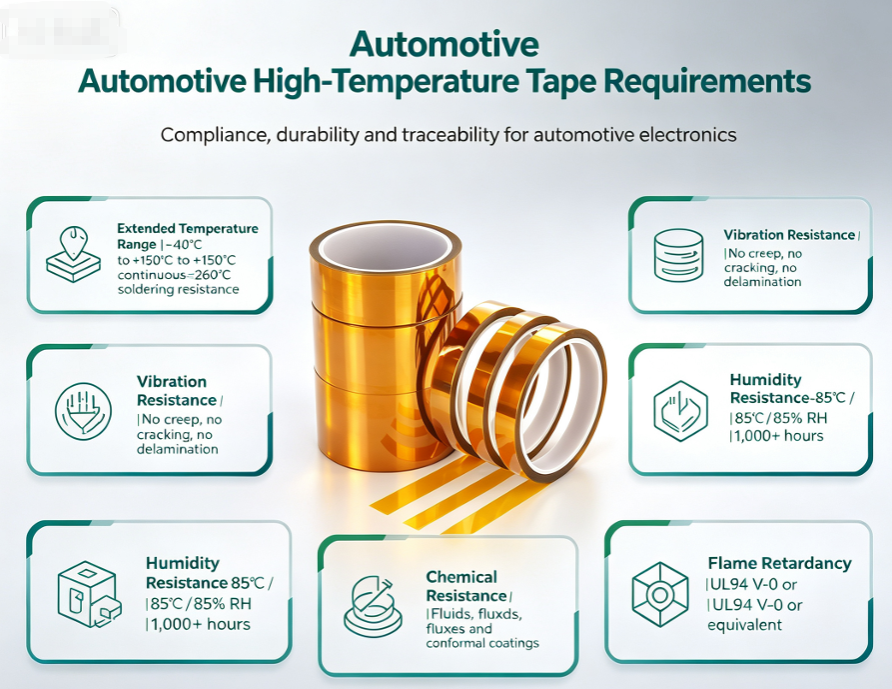

Key Performance Requirements for Automotive Tape

When specifying high temperature tape automotive applications, demand the  following:

* Extended Temperature Range: Must survive 260°C soldering and −40°C  to +150°C operational life.

* Vibration Resistance: Adhesive must not creep, crack, or  delaminate under constant mechanical vibration.

* Humidity Resistance: Must pass  85°C/85% RH testing for 1,000+ hours without delamination or corrosion promotion.

* Chemical Resistance: Impervious to automotive fluids, fluxes, and conformal  coatings.

* Flame Retardancy: Must meet UL94 V-0 or equivalent flammability  standards.

Applications in Automotive Electronics

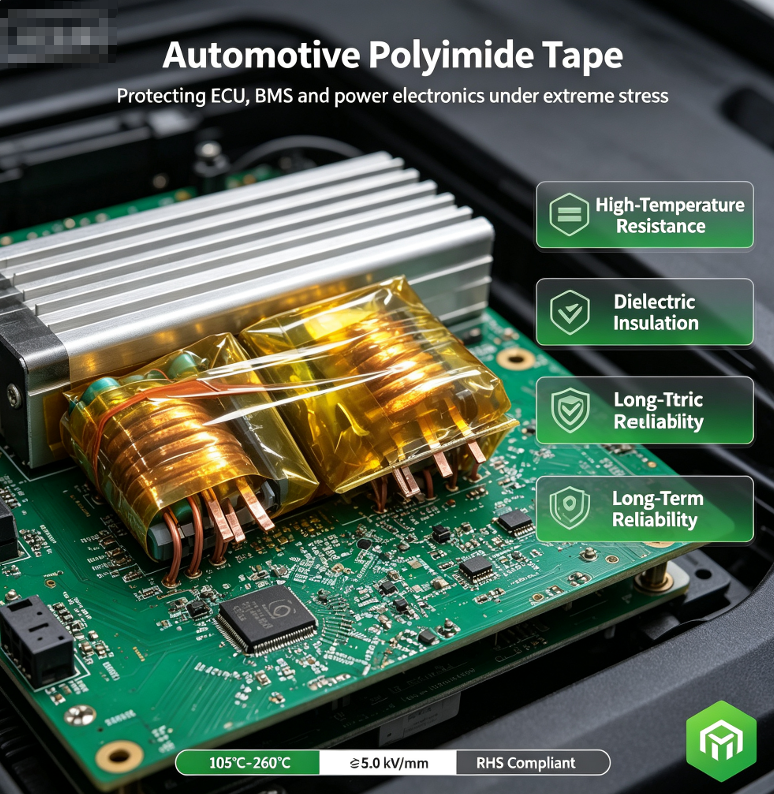

• ECU Manufacturing: Masking connectors and sensitive components during wave  and reflow soldering.

• Sensor Production: Insulating and protecting delicate sensing elements during  high-temperature assembly.

• LED Lighting: Heat dissipation and component protection in high-power  automotive LED modules.

• Battery Management Systems (BMS): Insulating busbars, cell connections, and  PCBs in EV battery packs.

• Infotainment Systems: Securing components and masking during PCB assembly  in harsh manufacturing environments.

Comparison: Industrial-Grade vs. Automotive-Grade Tape

Lvzhimei’s Solutions for Automotive Applications

LVMEI manufactures high-temperature tape specifically engineered for automotive  demands. Our K-2540, K-2550, K-2555, K-2560, K-5080, and K-50100 models utilize  premium virgin polyimide film and high-purity silicone adhesives. We offer custom  adhesion levels (100g-800g/25mm) and thicknesses (40μm-100μm) to match specific  automotive PCB and ECU requirements. Our ISO9001-certified facility ensures  consistent quality, and we are actively expanding our capabilities to meet IATF 16949  standards for Tier-1 suppliers.

Qualification Process for Automotive Tape Suppliers

Qualifying a new tape supplier for automotive use is rigorous:

1. Supplier Audit: Review quality systems, process controls, and traceability.

2. Material Testing: Comprehensive testing to AEC-Q200 and ISO 16750.

3. PPAP (Production Part  Approval Process): Full documentation of materials, processes, and capabilities.

4.  Pilot Build: Tape used in actual automotive PCB assembly.

5. End-of-Line Testing: Verify no residue, no lifting, and no interference with automated optical inspection  (AOI).

6. Field Validation: Long-term reliability testing in vehicle prototypes.

Common Failure Modes in Automotive Tape

• Thermal Cycling Degradation: Adhesive becomes brittle at -40°C and cracks, or  flows at +150°C, causing edge lift.

• Humidity-Induced Delamination: Moisture penetrates the adhesive-substrate  interface, causing bubbling or peeling.

• Fluid Compatibility: Automotive fluids plasticize the adhesive, turning it into a  gummy residue.

• Outgassing: Adhesive releases volatile compounds that contaminate nearby  sensors or optical components.

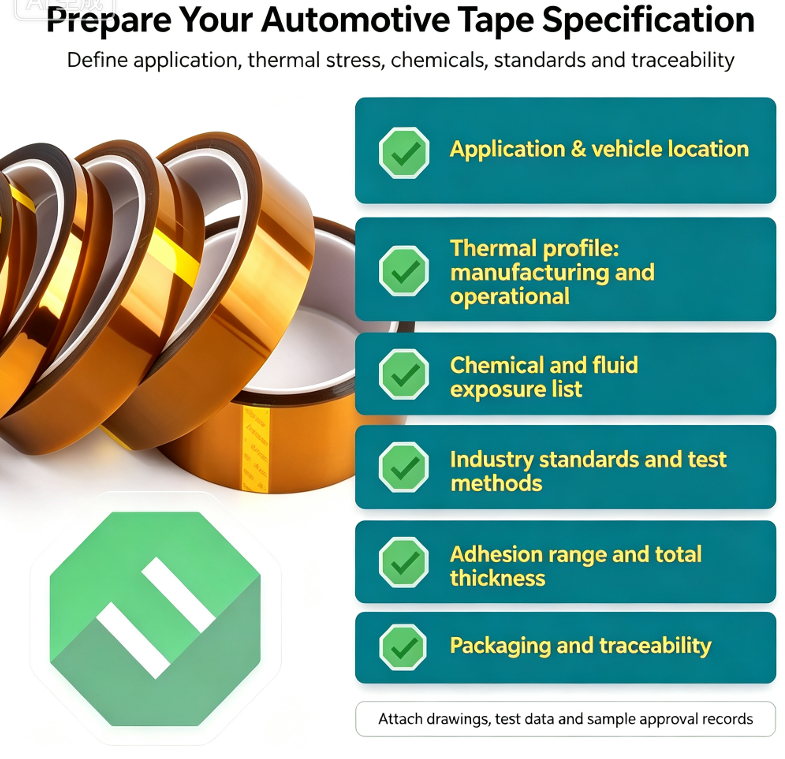

How to Prepare Your Tape Specification for Automotive Projects

Create a detailed specification document that includes:

* Exact application and  location in the vehicle

* Full thermal profile (manufacturing and operational)

* List  of all chemicals and fluids the tape will contact

* Required industry standards and test methods

* Adhesion range and total thickness

*kaging and traceability  requirements

Summary

Automotive electronics demand high-temperature tape that performs flawlessly in  the most punishing environments. By understanding industry standards, specifying  the right performance parameters, and partnering with a supplier
