When Should Manufacturers Transition to Gold Finger Electronics Polyimide Tape Kapton for PCB Protection? |https://www.lvmeikapton.com/

PCB protection technology upgrade guide: When to choose Kapton tape to achieve efficient production and long-term reliability

In the field of electronic manufacturing, PCB (Printed Circuit Board) is a core component, and the choice of its protection material directly affects the reliability and production efficiency of the product. With the advancement of intelligent manufacturing technology, traditional high-temperature tapes have been difficult to meet the needs of harsh industrial environments. This article analyzes the technical characteristics, cost-effectiveness and application scenarios of Kapton tape to provide manufacturers with decision-making references and clarify the timing and value of transitioning to Kapton tape.

1. Limitations of traditional PCB protection materials: Why upgrade is needed

PCB faces multiple challenges during manufacturing, transportation and use: high-temperature welding (above 260°C), chemical corrosion, mechanical stress and electromagnetic interference. Traditional protective materials such as PET high-temperature tape (temperature resistance of about 200°C) or brown high-temperature tape (rubber-based) have the following problems:

1. Insufficient temperature resistance: During wave soldering or reflow soldering, PET tape may shrink due to high temperature and residual glue, resulting in PCB solder joint contamination or circuit damage.

2. Limited insulation performance: The dielectric strength of traditional tapes (usually <5kV/mm) is difficult to cope with high-voltage environments and is prone to short-circuit risks.

3. Poor long-term reliability: Rubber-based tapes are prone to aging, and the residue after peeling affects secondary processing and increases rework costs.

ROI analysis reveals the necessity of technology upgrades: According to industry research, the use of Kapton can significantly reduce the rework cost of SMT (surface mount technology) production lines - through its 10kV/mm dielectric strength and 4.8N/cm peel strength, it reduces the defective rate caused by insulation failure or residues, and achieves a 68% reduction in rework costs.

2. Core technical advantages of Kapton tape

Kapton tape uses polyimide (PI) film as the substrate and combines it with silicone coating to form a protective material with both mechanical strength and electrical properties. Its key features are as follows:

1. Extreme environment tolerance

● Wide temperature range adaptability: long-term tolerance of -70℃ to 260℃ (short-term tolerance of 400℃), meeting the requirements of high-temperature processes such as lead-free welding.

● Chemical corrosion resistance: resists acid, alkali and organic solvent erosion, suitable for PCB cleaning and long-term outdoor exposure scenarios.

● Low dielectric loss: dielectric constant 3-3.2, breakdown voltage up to 10kV/mm, ensuring high-voltage circuit safety.

2. Mechanical properties and process compatibility

● High peel strength (4.8N/cm): stable bonding, no residual glue after peeling, avoiding secondary cleaning costs.

● Low friction coefficient: reduce the risk of jamming during automated placement and improve production line efficiency.

● Thin design: common thickness 0.05-0.13mm, suitable for high-density PCB layout.

3. Environmental protection and economy

● RoHS compliant: non-toxic and halogen-free, meeting green manufacturing requirements.

● Long service life: anti-aging performance extends maintenance cycle and reduces long-term costs.

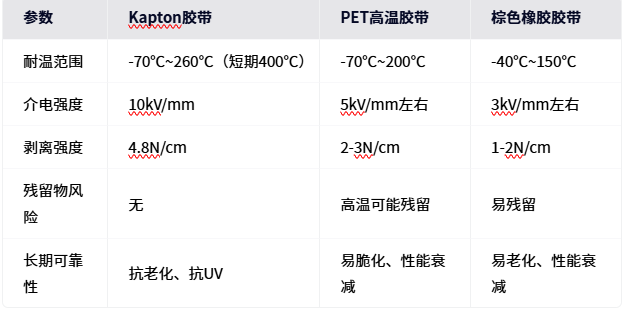

Technology comparison: Kapton vs. traditional high-temperature tape

3. When should manufacturers consider transitioning to Kapton tape?

The following scenarios strongly recommend the use of Kapton tape instead of traditional materials:

1. High-temperature process-intensive production lines

● Lead-free soldering process: The peak temperature is above 260°C, which traditional tapes cannot withstand.

● Multi-layer PCB assembly: It needs to undergo multiple high-temperature reflow soldering, requiring the material to have long-term heat resistance.

● High-temperature environment applications: such as automotive electronics and aerospace equipment, which need to withstand extreme temperatures and vibrations.

2. High-voltage circuit protection needs

● Medical equipment, power electronics: High-voltage components (such as transformers and motor drives) require high dielectric strength protection.

● High-frequency signal transmission: Kapton's low dielectric loss characteristics reduce signal attenuation and are suitable for 5G communication modules and radar systems.

3. Cost control and efficiency improvement goals

● High rework rate scenarios: If the rework cost is high due to insulation failure or residual glue problems, Kapton can significantly reduce losses.

● Automated production line upgrade: Low friction characteristics are suitable for high-speed placement equipment to reduce the frequency of downtime maintenance.

4. Long-term reliability and compliance considerations

● High product life requirements: such as industrial control equipment and military electronics, the material anti-aging performance is required to ensure long-term operation.

● Environmental regulations drive: EU RoHS, REACH and other standards promote the application of halogen-free materials.

IV. Kapton tape selection and use guide

Selection core elements:

1. Temperature resistance level matching: Select the Kapton type according to the process temperature (such as standard type 260℃ or high temperature type 400℃).

2. Adhesion requirements: high viscosity type is used to fix components, and low viscosity type is convenient for rework adjustment.

3. Substrate thickness optimization: thin type (0.05mm) is suitable for precision components, and thick type (0.13mm) enhances mechanical protection.

Precautions for use:

● Storage environment: avoid high temperature (<40℃) and humidity to prevent tape aging.

● Attachment skills: clean the surface, avoid bubbles, and ensure uniform bonding pressure.

● Peeling control: It is recommended to peel at a low speed of 180° to prevent stress damage to the PCB.

V. Analysis of practical application cases: Kapton tape helps industrial upgrading

Case 1: Automotive electronic PCB protection

In the production of battery management system (BMS) PCB, a new energy vehicle company originally used PET tape, which resulted in a 30% rework rate due to high-temperature residual adhesive. After switching to Kapton tape, the yield rate was increased to 98% and the cost per batch was reduced by 25% through its no residual adhesive characteristics and 10kV insulation performance.

Case 2: 5G base station PCB assembly optimization

Communication equipment manufacturers introduced Kapton tape in high-frequency PCB assembly, using its low dielectric loss characteristics to reduce signal transmission loss by 15%, while its high temperature resistance meets the long-term operation requirements of outdoor cabinets.

VI. Future trends: The role of Kapton tape in intelligent manufacturing

With the continuous demand for miniaturization and high performance of PCBs by AIoT (artificial intelligence Internet of Things) devices, Kapton tape is developing in the following directions:

1. Ultra-thin: Develop products with a thickness of less than 0.025mm to adapt to flexible electronics and high-density packaging.

2. Intelligent material integration: Combine antistatic and electromagnetic shielding functions to form a multifunctional composite tape.

3. Automation compatibility: Optimize surface treatment to improve the accuracy and efficiency of robot arm attachment.

Conclusion: Technology upgrade drives industry competitiveness

Goldfinger Electronics Polyimide Tape (Kapton) has become a key technology in the field of PCB protection due to its excellent electrical performance, extreme environmental tolerance and economy. When manufacturers face high-temperature processes, high-voltage circuits or efficiency improvement needs, timely transition to Kapton tape can not only reduce short-term costs, but also build long-term product reliability advantages and lay a technical foundation for intelligent production.
