High-Temperature Tape Residue Problem Solved: Why Some Tapes Fail After Heating and How to Avoid It
SMT processes. Learn the science of residue, 5 root causes, and how to specify heat
resistant tape no residue for your production.
Your production line just finished a reflow cycle. When operators remove the tape,
there’s a sticky, discolored mess left behind. That single incident costs you cleanup
time, potential rework, and worst of all—customer trust. In high-precision
electronics manufacturing, high temperature tape residue is not just a nuisance; it is
a critical quality failure. Whether you are masking PCB gold fingers, protecting
components during SMT, or insulating transformer windings, the adhesive must
perform flawlessly under extreme thermal stress. If you are dealing with polyimide
tape residue problems, you are likely losing money on solvent cleaning, rework, and
scrapped boards. This guide breaks down the exact science of why tapes fail and
provides actionable steps to ensure your next batch of high-temperature tape leaves
zero residue.

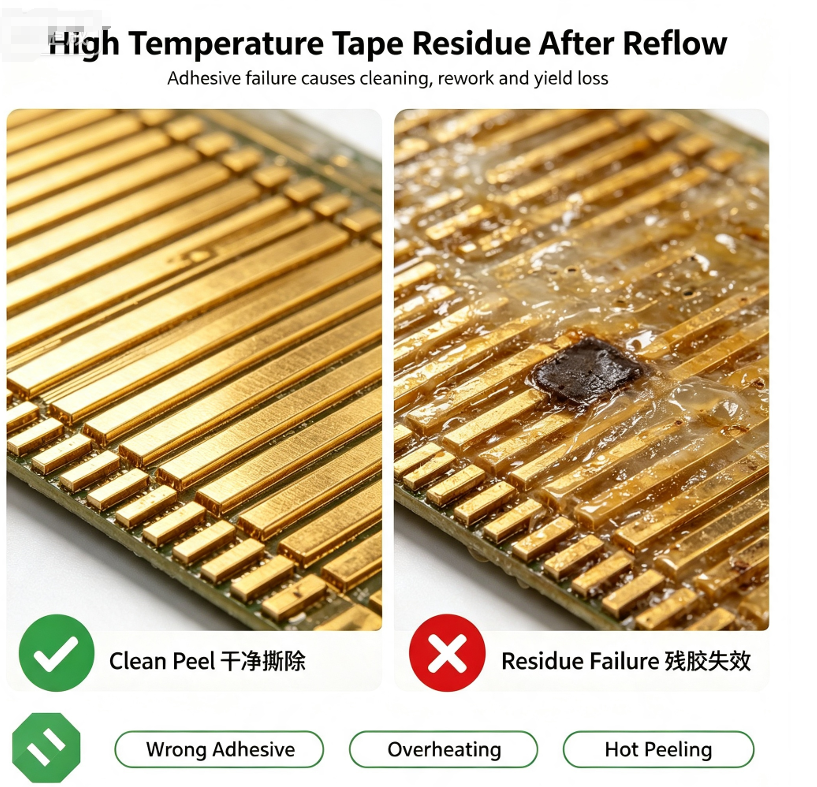

What Is Tape Residue and Why It Happens
Tape residue occurs when the adhesive layer separates from the polyimide (Kapton) film backing during or after thermal exposure. Instead of staying bonded to the backing, the adhesive transfers to the substrate or breaks apart, leaving a sticky film. This is primarily caused by three factors: adhesive migration, polymer degradation, and the use of low-quality adhesives.
Adhesive migration happens when the adhesive becomes too fluid at high temperatures and seeps into the microscopic pores of the substrate. Polymer degradation occurs when the thermal threshold of the adhesive is exceeded, causing the chemical bonds to break down into a gummy or charred state. Finally, lowquality adhesives lack the thermal stability required for modern SMT reflow profiles, making them inherently prone to failure.
The Science Behind Residue Formation

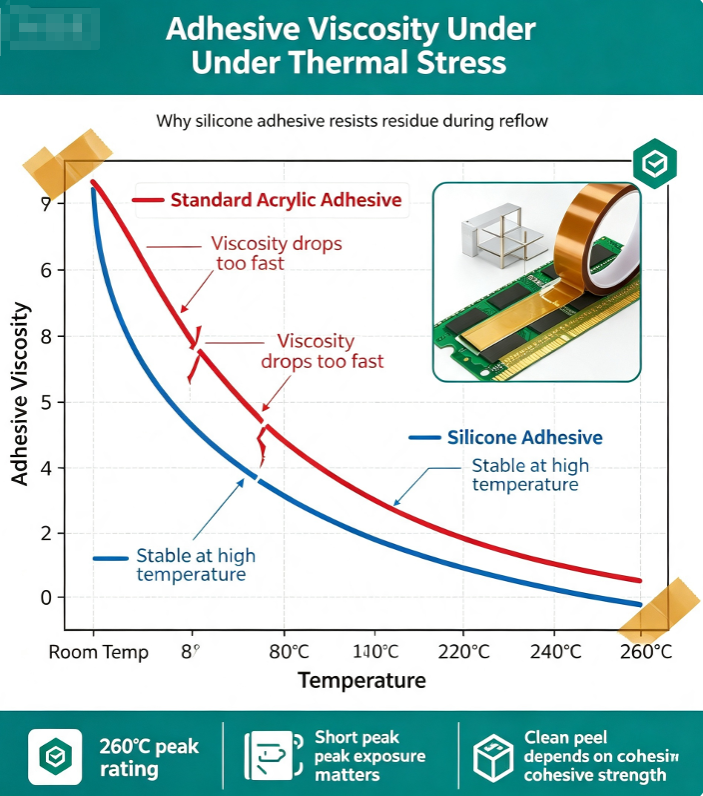

Understanding the time-temperature relationship is critical to preventing Kapton tape residue after heating. Adhesives have specific thermal stability limits. Standard acrylic adhesives typically begin to degrade or soften above 150°C, making them completely unsuitable for lead-free reflow soldering, which can peak at 260°C. High-temperature silicone adhesives, however, are engineered to withstand continuous exposure up to 260°C without cross-linking breakdown or excessive flow.
When a tape is exposed to heat, the adhesive’s viscosity drops. If the adhesive’s cohesive strength (internal strength) drops faster than its adhesion strength (bond to the substrate), it will tear and leave residue upon removal. Furthermore, prolonged exposure to peak temperatures accelerates chemical degradation. A tape rated for 260°C for 10 seconds may fail if left in the oven for 60 seconds.
5 Root Causes of Residue
To solve the polyimide tape residue problem, you must identify the root cause. Here are the five most common technical reasons for adhesive failure:
1. Adhesive Exceeding Its Thermal Stability Limit: Using an acrylic or rubberbased tape in a lead-free SMT process will guarantee residue. The adhesive simply cannot survive the 260°C peak.
2. Poor Adhesive-to-Film Bonding: If the silicone adhesive is not properly anchored to the polyimide film during the coating process, the heat will cause the adhesive to delaminate from the backing, leaving it on your PCB.
3. Extended Exposure Above Rated Temperature: Even high-quality Kapton tape has a time limit. Exceeding the manufacturer’s specified dwell time at peak temperature will degrade the adhesive.
4. Low-Quality Raw Materials: Cheap tapes use inferior polyimide films and unformulated silicone adhesives that lack thermal stabilizers, leading to unpredictable performance.
5. Improper Storage Conditions Before Use: High-temperature tapes are sensitive to humidity and UV light. Storing them in unconditioned warehouses can cause the adhesive to absorb moisture or pre-age, drastically reducing its thermal performance.
How to Identify Residue-Prone Tapes Before Purchase
Don’t wait for a production failure to test your tape. Implement these pre-purchase evaluations:
Visual Inspection: High-quality Kapton tape should have a uniform, glossy amber/golden color with no bubbles, streaks, or edge ooze.
* Simple Heat Test: Apply the tape to a coupon of your actual substrate. Run it through your exact reflow profile. Wait for it to cool to room temperature before removing. If it leaves residue while hot but cleans up when cold, it is still a risk for automated removal.

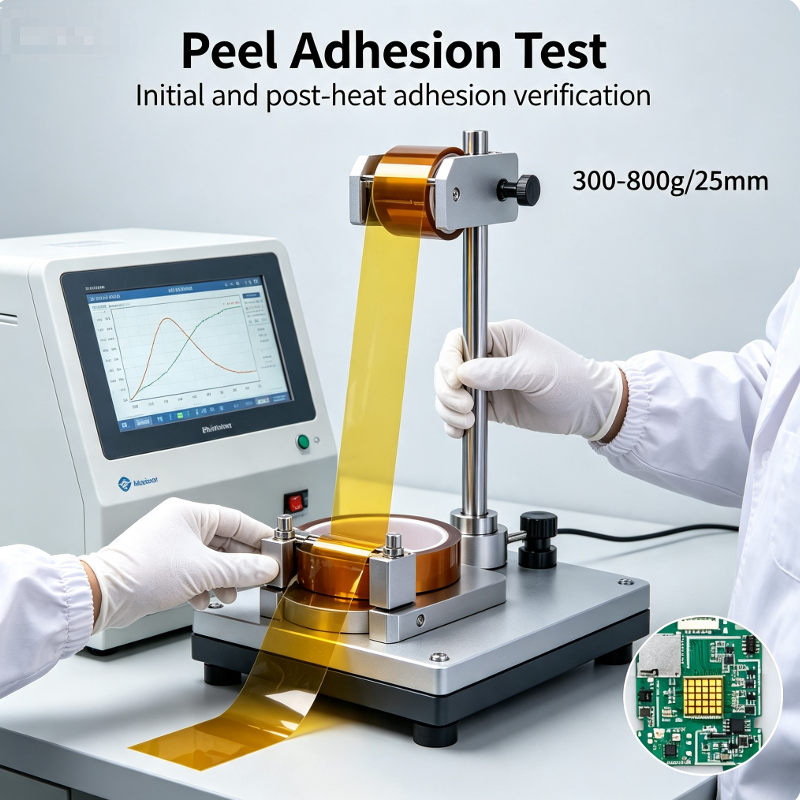

* Adhesion Test: Request a peel adhesion data sheet. For SMT masking, adhesion should typically be between 300g-500g/25mm. Too low, and it lifts during soldering; too high, and it will tear and leave residue upon removal.
Residue Prevention Checklist
Ensure your operators and purchasing team follow this checklist to guarantee heat resistant tape no residue results:
* Storage: Store tape in a climate-controlled environment (20-25°C, <60% RH) away from direct sunlight. Use FIFO (First In, First Out) inventory management.
* Handling: Avoid touching the adhesive side. Oils from skin can compromise adhesion and cause localized residue.
* Application: Apply tape at room temperature with consistent pressure. Avoid stretching the tape, which creates tension that leads to lifting and residue.
* Removal: Always remove the tape while the substrate is at room temperature. Removing tape while hot can cause the adhesive to stretch and snap, leaving residue.
Comparison: Lvzhimei’s Silicone-Based Adhesive vs. Standard Acrylic Adhesive
Feature | Standard Acrylic Adhesive | LVMEI Silicone-Based Adhesive |
Max Continuous Temp | 150°C - 180°C | 260°C |
SMT Reflow Safe | No | Yes |
Residue After 260°C | High | None |
Chemical Resistance | Poor | Excellent |
Peel Adhesion Stability | Degrades rapidly at high heat | Stable across thermal cycles |
Real-World Impact: Cost of Residue Problems
The cost of high temperature tape residue extends far beyond the price of the tape. Downtime for cleaning fixtures, labor hours spent scraping and solvent-wiping PCBs, the cost of cleaning chemicals, and the risk of damaging delicate gold fingers during cleanup add up quickly. Worse, if residue causes a latent solder joint failure in the field, the cost of warranty claims and customer trust can be catastrophic. Investing in premium, residue-free tape from a reliable manufacturer like LVMEI pays for itself by eliminating these hidden costs.
How to Specify “No Residue” in Your Purchase Requirements
When sourcing high-temperature tape, do not just ask for “Kapton tape.” Specify your exact requirements:
1. Base Film: Virgin polyimide film, 25μm or 50μm.
2. Adhesive Type: High-temperature silicone (explicitly state acrylic is not acceptable).
3. Thermal Rating: Must withstand 260°C for [X] minutes without residue.
4. Adhesion Level: Specify exact range (e.g., 400g/25mm ± 50g).
5. Certifications: Require RoHS, REACH, and ISO9001 compliance.
Summary
High temperature tape residue is a solvable engineering problem, not an unavoidable manufacturing reality. By understanding the chemistry of adhesive degradation, identifying the root causes of failure, and implementing strict quality control and specification standards, you can protect your production line and your reputation. LVMEI specializes in high-performance polyimide tapes engineered specifically to eliminate residue in the most demanding SMT and reflow applications.
